Conventional wisdom says newer battery chemistry always replaces older ones, yet millions of full-hybrid vehicles still roll off production lines with nickel-metal hydride (NiMH) traction packs. Toyota, the world's most experienced hybrid maker, continues to fit NiMH across a large share of its hybrid range, two and a half decades after the technology debuted. This is not conservatism — it is engineering economics. A hybrid's duty cycle, safety requirements and cost targets happen to align almost perfectly with what NiMH does best. This article opens the hybrid battery pack and explains why the chemistry keeps winning in power-assist hybrid vehicles.

Anatomy of a Hybrid NiMH Pack

A typical front-wheel-drive full hybrid uses a high-voltage NiMH pack built from small 1.2 V cells grouped into modules. The classic Gen-2/Gen-3 Prius configuration is representative of the industry:

• Cells and modules — six 1.2 V cells are sealed into a 7.2 V module, and 28 such modules are connected in series to give a nominal pack voltage of about 201.6 V (168 cells total). Other platforms scale the same building blocks up or down — for example, smaller hybrids use 144 V packs.
• Prismatic construction — automotive NiMH uses flat, stacked prismatic modules rather than loose cylindrical cells, maximising pack volumetric efficiency and giving rigid, vibration-resistant structure inside a stamped-metal enclosure.
• Integrated hardware — module busbars, voltage-sampling harnesses, temperature sensors, safety relays, a service disconnect and crash-isolation contactors all live inside or alongside the sealed pack case, typically mounted behind the rear seats or under the cargo floor.

The electrolyte — an alkaline potassium/sodium-hydroxide solution — is absorbed into the electrodes and separator, so modules are non-spillable in any orientation, an important property for crash safety.

Why the Hybrid Duty Cycle Suits NiMH Perfectly

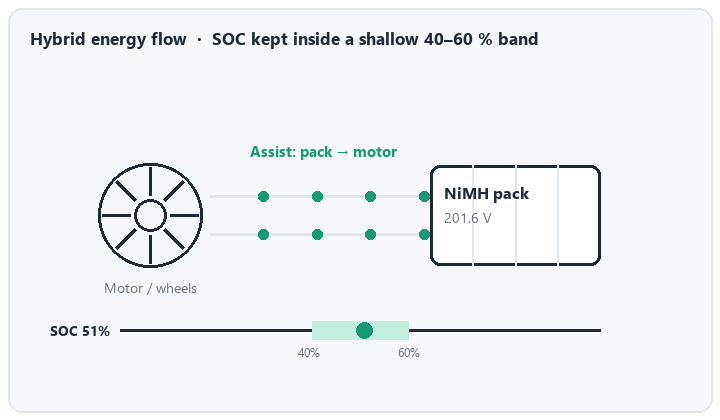

An electric vehicle drains its battery steadily and recharges slowly; a hybrid does the opposite. The engine, regenerative brakes and electric motor shuffle energy in and out of the pack every few seconds, so the battery lives in a narrow, deliberately shallow state-of-charge (SOC) band — typically held around 40–60 % with a control target near 55–60 %, never fully charged and never deeply drained.

• Shallow cycling is NiMH's sweet spot — nickel-metal hydride tolerates hundreds of thousands of small charge/discharge excursions far better than deep cycles, and shallow operation minimises electrode stress, heat and fade.
• Bidirectional pulse acceptance — NiMH accepts very high charge pulses during regenerative braking just as readily as discharge pulses for launch assist, which is exactly the "power not energy" role of a hybrid pack.
• No plug required — because the engine maintains SOC continuously, the pack never sees the deep, prolonged discharge that punishes lesser chemistries.

Thermal Management: Keeping Hundreds of Cells Uniform

Large series strings live or die by temperature uniformity, and hybrid NiMH packs solve this with elegant simplicity. Most use passive or forced-air cooling: cabin air is ducted through gaps between modules by a small, speed-controlled fan, guided by thermistors at several positions across the stack. There is no liquid-cooling loop, no chiller and no complex manifold — NiMH's lower heat generation under shallow cycling and its benign failure behaviour make air cooling sufficient. Module spacing, thermally conductive cases and symmetrical airflow paths keep cell-to-cell temperature spread tight, because a single hot module ages faster and becomes the weak link that limits the whole string.

Safety and Abuse Tolerance at Automotive Scale

Vehicles expose batteries to vibration, wide ambient temperatures, crash loads and decades of service, where a thermal event is unacceptable. NiMH's chemistry answers with structural safety advantages:

• Aqueous electrolyte — the water-based KOH electrolyte is non-flammable, unlike lithium-ion's organic solvents, so there is no fuel for a propagating thermal runaway.
• Sealed, vented modules — each cell recombines overcharge gas internally; a mechanical vent is the last-resort pressure escape, and modules are engineered to vent gas along defined paths rather than rupture.
• Electrical safeguards — relays, fuses, a manual service disconnect and continuous voltage/temperature monitoring isolate the high-voltage bus in a collision.

NiMH vs Lithium for Hybrid Duty

Lithium-ion outperforms NiMH on gravimetric energy density, which is why it dominates battery-electric and plug-in vehicles that need long all-electric range. For a conventional "power-assist" hybrid, however, the comparison tilts back to NiMH:

• Cost per pack — NiMH uses no cobalt and relies on abundant nickel and steel; mature, high-volume production keeps pack cost low for a component that only stores a small amount of energy.
• Shallow-cycle longevity — in the narrow SOC band hybrids actually use, NiMH routinely supports 10–15+ years and hundreds of thousands of kilometres of real service.
• Cold-weather behaviour — NiMH retains strong pulse acceptance at low temperatures, with no lithium-plating risk during regenerative charging.
• Safety margin — the benign failure profile reduces the engineering burden of containment and protection.

Lessons for Every Pack Designer

The hybrid industry's success with NiMH transfers directly to stationary and industrial pack design: exploit shallow cycling rather than full-range capacity; grade and match cells tightly for long series strings; engineer uniform airflow before adding electronics; rate cells for the pulse currents your duty cycle actually demands; and let a forgiving chemistry reduce the protection complexity your product needs.
